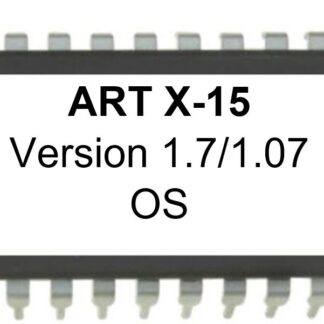

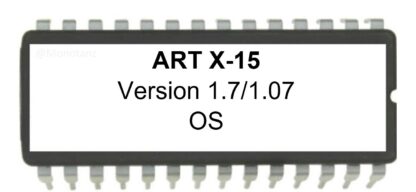

ART X-15 – Version 1.7/1.07 Firmware Upgrade Update Rom OS


SKU: FW-351 Category: Tags: , ,


Brand: ART

Model: X-15


√ 1 x Eprom


1. Open your device

2. Locate your Eprom socket and note the notch orientation.

3. Pull up the Eprom

4. Insert the new eprom with the notch in the same direction as you noted in point 2.

Features and further details

This is firmware update 1.07/1.7 and is the latest official released operation system by Art. This operation system update/upgrade requires one eprom.

How to check current version:

Directly after power-up and before the display shows Art, press simultaneously the BYPASS, 9 and 10 pads. You are now in pedal test mode. While you are in this mode, press any activator pad except the MODE pad and the software version will be displayed.


  • New version 1.07 software incorporates the MMA/JMSC Bank select protocol to access beyond 128 locations. Three modes of preset recall are available: 1-128, 1-200 and 1-255. Bank up and down pads are provided for quick access to any preset location. LED’s located above each numbered pad indicate the preset selected within a bank. In Effects Mode the numbered pads to function as MIDI on/off controllers. When used with A R T processors, individual effects can be turned on and off in a preset. These controllers are fully programmable for use with other equipment.
  • This new firmware version will allow you to switch all the way up to program No. 255


  • Required for ART SGX 2000 Express
  • Original X-15 Ultrafoot MIDI controller you can only send MIDI program changes from program 1 to128 but not beyond
